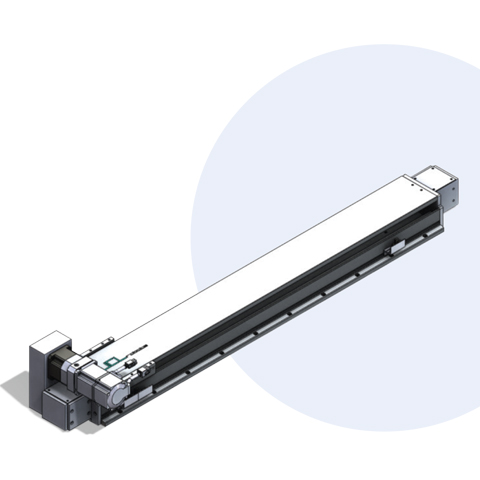

BELT JES-B-120PL/R
| Model | JES-B-120PL/R |
|---|---|
| Motor | Ac Servo 200W / 400W 3,000rpm |
| Drive Mechanism | Timming Belt (5GT,GATES) P.C.D 38.21 |
| LM Guide | No.15 2Way 4Block |
| Repeatability | ±0.08mm |
-
2D 다운로드
-
3D 다운로드
본문
Detail view
Driving Specifications
| Reducer Rate | 6 | |
| Max Speed | 1000mm/s | |
| Payload(kg) | 수평 | 60 |
※ 위 하중은 Overhang에 따라 변경될 수 있음
Stroke by Max Speed & Weight
| Stroke | 100 | 200 | 300 | 400 | 500 | 1,000 | 1,500 | 2,000 | 2,500 | 3,000 |
| Max Speed | 1000mm/s | |||||||||
| Weight | 11 | 12 | 13.1 | 14.1 | 15.1 | 20.3 |
25.5 | 30.7 | 35.9 | 41.1 |
